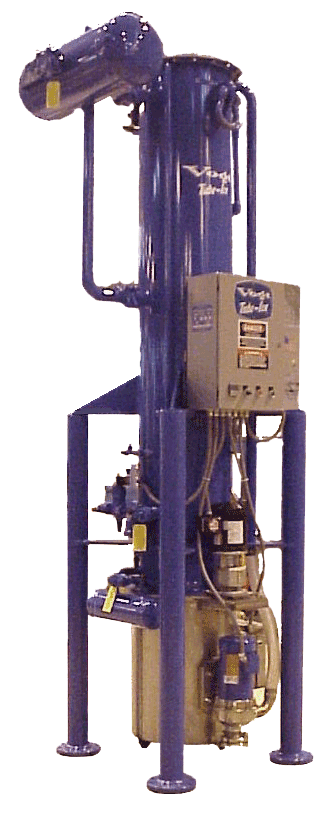

The P18AL Series with a capacity of 10 tons of ice per day is an ammonia low-side Tube-Ice machine designed to operate with a dedicated ammonia high-side or on a central refrigeration system.  With the small footprint and the availability of crushed ice and cutterless options, the P18AL is ideal for use in many industrial applications with existing ammonia refrigeration systems.

Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make Vogt Tube-Ice machines the only “clear” choice for your ice making needs.

P18AL Standard Features

25 Year Evaporator Warranty

Up to 25 tons of ice per day

Voltage – 230v.,3p.,60hz.

Control Voltage – 230v.,1p.,60hz.

UL 508A Industrial Control Panel

Ammonia flooded operation

Manufactured in accordance with A.S.M.E. code

Standard ice length 1”



P24AL Standard Ice Sizes:

Tube-Ice approximately 7/8″ Diameter X 3/4″ Long (P18AL-1″ models)
Tube-Ice approximately 1 1/8″ Diameter X 1″ Long (P18AL 1-1/4″ models)
Tube-Ice approximately 1 3/8″ Diameter X 1″ Long (P18AL 1-1/2″ models)
Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)

energy-star-partner   ul-logo   ce-logo  asme-logo

P18AL Options

Voltage – 460 v.,3p.,60hz.

Voltage – 400v.,3p.,50hz.

Voltage – 575v.,3p.,60hz.

120v Controls

PLC Control panel (programmable logic controller)

Power monitor

Cutter for 1-1/2” long ice

Cutter for crushed ice

Cutterless option

All stainless steel

“CE” Approval (400v, 50hz only)

Canadian Registration Number (CRN)
P18AL Spec Sheet (pdf)
