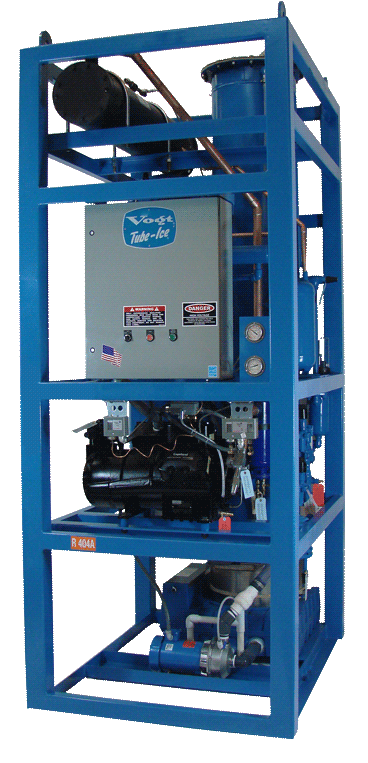

The P18XT Series with a capacity of 10 tons of ice per day is the workhorse of Vogt’s mid-size Tube-Ice machine line.  Available as a self-contained water cooled or remote air-cooled unit,  the P18XT will provide you with years of dependable service.  Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make the Vogt P18XT Series the only “clear” choice for your ice making needs.

P18XT Standard Features:

25 Year Evaporator Warranty

Voltage – 208/230v.,3p.,60hz.

Refrigerant 404a

Highly efficient Copeland Discus compressor

Water-cooled or remote air-cooled operation

Domestic crating for machine and condenser

Power monitor on 50hz units

P18XT Standard Ice Sizes:

Tube-Ice approximately 7/8″ Diameter X 3/4″ Long (P18XT-1″ models)
Tube-Ice approximately 1 1/8″ Diameter X 1″ Long (P18XT 1-1/4″ models)
Tube-Ice approximately 1 3/8″ Diameter X 1″ Long (P18XT 1-1/2″ models)
Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)

energy-star-partner    ul-logo  ce-logo  asme-logo

P18XT Options

Voltage – 460v.,3p.,60hz.

Voltage – 400v.,3p.,50hz.

Voltage – 200v.,3p.,50hz. or 230v.,3p.,50hz.

Voltage – 575v.,3p.,60hz.

Electro-fin coated condenser

Condenser for sea water

PLC Control panel (programmable logic controller)

Cutter for 1-1/2” long ice

Stainless steel casings

Remote switch box

Power monitor (for 60hz.)

“CE” Approval (400v, 50hz only)

Canadian Registration Number (CRN)

Export crating (ISPM-15 Rated)
