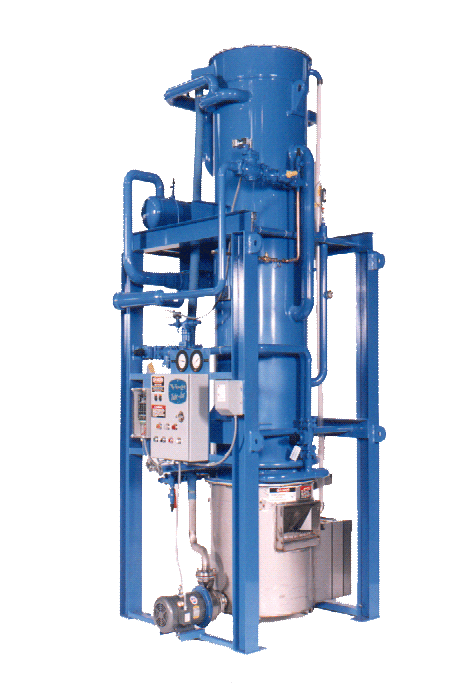

The P24FL Series with a capacity of 25 tons of ice per day is a low-side Tube-Ice machine designed to operate with a dedicated R404a high-side or on a central refrigeration system. The P24FL will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make Vogt Tube-Ice machines the only “clear” choice for your ice making needs.

P24FL Standard Features

25 Year Evaporator Warranty

Up to 25 tons of ice per day

Voltage – 230v.,3p.,60hz.

Control Voltage – 230v.,1p.,60hz

UL 508A Industrial Control Panel

Manufactured in accordance with A.S.M.E. code

Standard ice length 1”

P24FL Standard Ice Sizes:

Tube-Ice approximately 7/8″ Diameter X 3/4″ Long (P24FL-1″ models)
Tube-Ice approximately 1 1/8″ Diameter X 1″ Long (P24FL 1-1/4″ models)
Tube-Ice approximately 1 3/8″ Diameter X 1″ Long (P24FL 1-1/2″ models)
Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)

energy-star-partner   ul-logo   ce-logo  asme-logo

P24FL Options

Voltage – 460 v.,3p.,60hz.

Voltage – 400v.,3p.,50hz.

Voltage – 575v.,3p.,60hz.

120v Controls

PLC Control panel (programmable logic controller)

Power monitor

Cutter for 1-1/2” long ice

Cutter for crushed ice

Cutterless option

All stainless steel

“CE” Approval (400v, 50hz only)

Canadian Registration Number (CRN)

R22 Operation

R507 Operation
