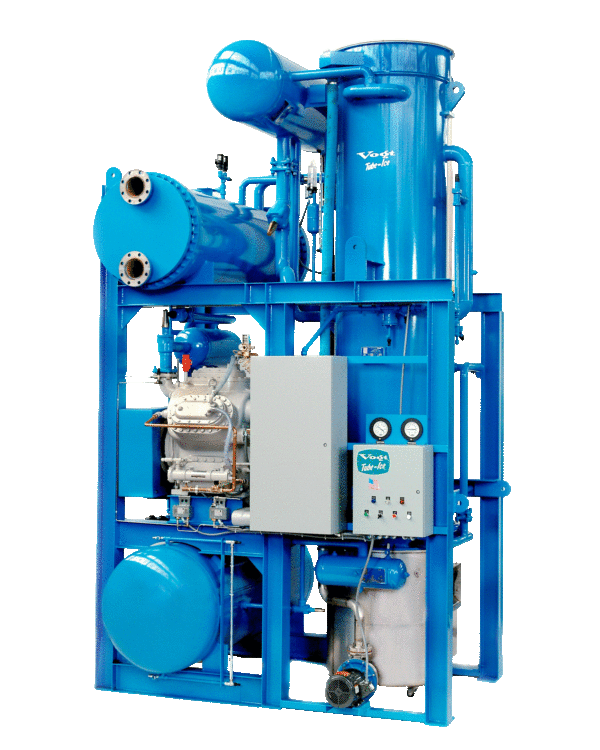

The P34A/F Series with a capacity of 50 tons of ice per day provides an alternative for producing large quantities of ice without the need of a central refrigeration plant. The P34A/F is a self contained water cooled machine for operation with ammonia (P34A) or R404a refrigerant (P34F), and will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make the Vogt P34A/F Series the only “clear” choice for your ice making needs.
P34A/P34F Standard Features
Self Contained Packaged Unit
Factory Tested and Certified
25 Year Evaporator Warranty
Voltage – 460v.,3p.,60hz.
Control Voltage – 230v.,1p.,60hz.
UL 508A Industrial Control Panel
Compressor Soft Start
R404a or Ammonia Refrigerant
Mycom Compressor Standard
R404a refrigerant charge included in P34F (except CE units)
P34A/P34F Standard Ice Sizes:
Tube-Ice approximately 7/8″ Diameter X 3/4″ Long (P34-1″ models)
Tube-Ice approximately 1 1/8″ Diameter X 1″ Long (P34 1-1/4″ models)
Tube-Ice approximately 1 3/8″ Diameter X 1″ Long (P34 1-1/2″ models)
Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)
Voltage – 230v.,3p.,60hz. (P34A only)
Voltage – 400v.,3p.,50hz.
Voltage – 200v.,3p.,50hz. (P34A only)
Voltage – 575v.,3p.,60hz.
PLC Control panel (programmable logic controller)
Cutter for 1-1/2” long ice
Cutter for crushed ice
Vilter compressor (required for CE)
Stainless steel condenser tubes
“CE” Approval (400v, 50hz only)
Canadian Registration Number (CRN)
